產品概述

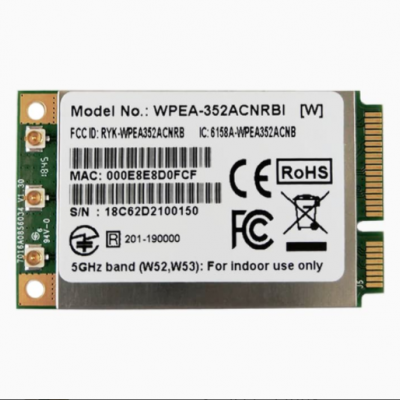

WPEA-352ACNRBI 是一款工業級 IEEE 802.11ac 無線適配器，可在 2.4GHz 和 5GHz 頻段運行，提供 mini PCIe 外形尺寸。采用QCA9890芯片組，工作溫度范圍為 -40°C~+85°C。 WPEA-352ACNRBI 使用 3×3 MIMO 技術將整體吞吐量大幅提高至 1.3Gbps。利用革命性的 WiFi 5 技術，WPEA-352ACNRBI 在吞吐量和范圍方面樹立了新的標桿，使其成為消費者和企業應用的理想選擇。
WPEA-352ACNRBI 采用 Qualcomm Atheros 無線電芯片，采用 3×3 11ac/a/b/g/n 技術，可實現更高的吞吐量性能、可靠性和范圍。它是適用于戶外和惡劣環境的可靠設計。針對 Wi-Fi 擁塞環境的高抗干擾性和法規模塊化認證可加快系統集成。
適用應用
-
- • 工業電腦
- • 車載路由器
- • 車載前排
- • 機器人
- • 車載電腦
- • 戶外IPTV
- • 后終端無人機
- • 智能網關
參數特性
STANDARD
|
| WI-FI |
IEEE 802.11ac/a/b/g/n |
| Chipset |
·Qualcomm Atheros QCA9890-BR4B |
| Host Interface |
WLAN : PCIe |
RADIO
|
| Antenna |
3 x IPEX MHF1 connectors |
| Operating Frequency |
802.11ac/a/b/g/n ISM Band |
| 2.412GHz~2.484GHz
5.150GHz~5.850GHz
*Subject to local regulations
|
MODULATIONS
|
| 802.11b |
DSSS (DBPSK, DQPSK, CCK) |
| 802.11g |
OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
| 802.11n |
OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
| 802.11a |
OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
| 802.11ac |
OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM) |
POWER & SENSITIVITY
|
| WiFi |
Power – TX (± 2dBm) |
Sensitivity – RX |
| 11b @11Mbps |
20dBm |
≤ -86dBm |
| 11g @ 54Mbps |
16dBm |
≤ -73dBm |
| 11gn HT20 @ MCS 7 |
15dBm |
≤ -70dBm |
| 11gn HT40 @ MCS 7 |
15dBm |
≤ -67dBm |
| 11a @ 54Mbps |
14dBm |
≤ -73dBm |
| 11an HT20 @ MCS 7 |
13dBm |
≤ -71dBm |
| 11an HT40 @ MCS 7 |
13dBm |
≤ -68dBm |
| 11ac VHT80 @ MCS 9 |
10dBm |
≤ -58dBm |
POWER CONSUMPTION
|
| Continue TX |
1360mA |
| Continue RX |
720mA |
ENVIRONMENTAL
|
| Operating Voltage |
DC 3.3V |
| Temperature Range |
-40~ 85°C (Operating) |
-40 ~ 85°C (Storing) |
| Humidity(Non-Condensing) |
10~ 85% (Operating) |
5 ~ 90% (Storing) |
SIZE
|
| Dimension (MM) |
50.8mm(±0.3mm) x 29.85mm(±0.3mm) x 4.1mm(±0.3mm) |
| Weight |
7.7g |
SOFTWARE
|
| Driver |
Linux |
| Security |
64/128-bits WEP, WPA, WPA2,WPS,802.1x |
Miscellaneous
|
| Warranty Period |
12 Month |
| HS Code |
8517620050 |
認證
 |
 |
 |
 |
| USA |
EU Region |
Japan |
Canada |
環境合規
 |
 |
|
|
| ROHS |
REACH |
|
|
